Mission-ready.
field-proven.
Delivers the Highest Quality Drinking
Water in the Harshest Environments
Flexible Sources
Suitable for a variety
of surface and ground
water supplies.
Maximim Purity
Reverse osmosis (RO) incorporated in a robust, 5-stage water filtration system.

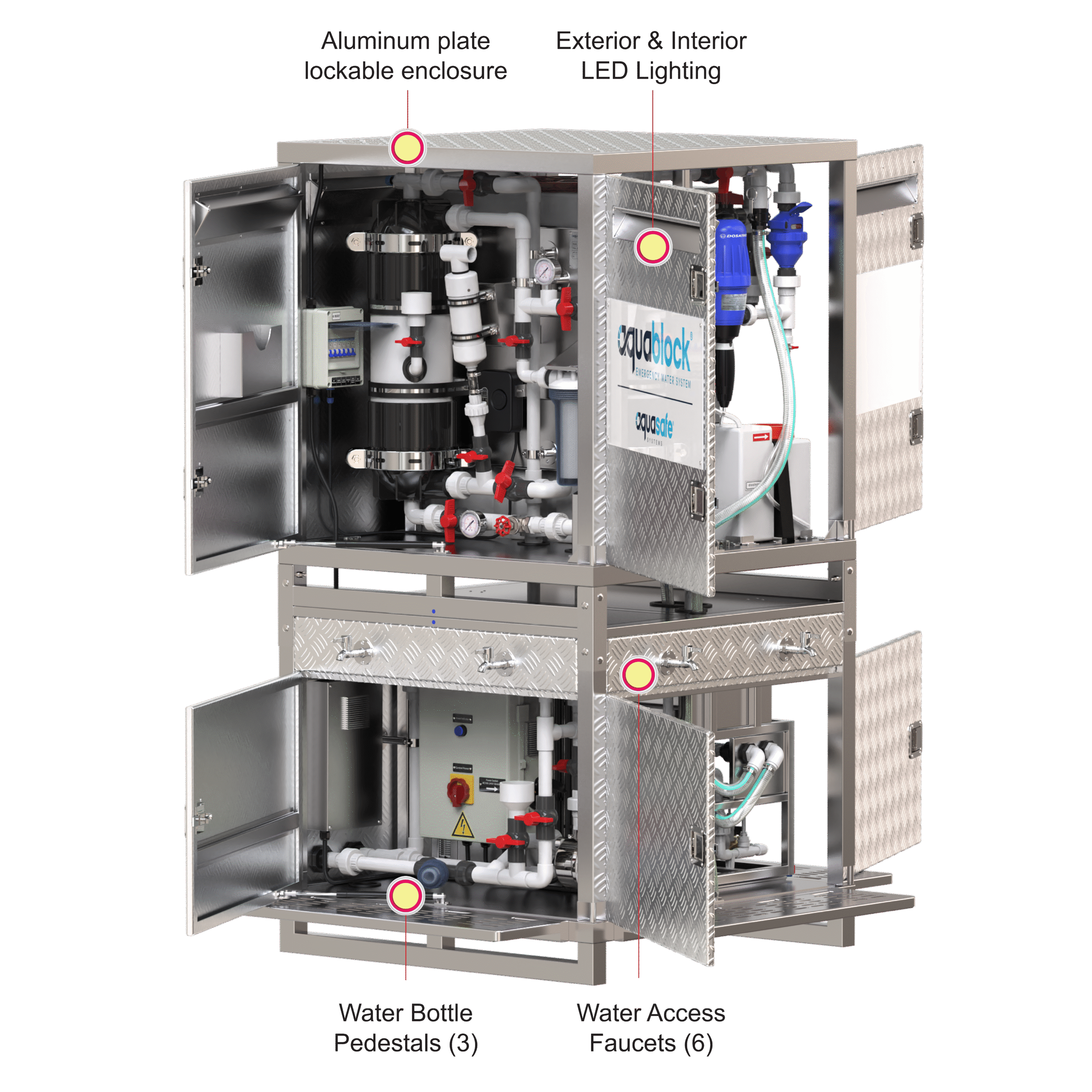

Rugged Design
Aluminum plate lockable
enclosure with six
dispensing access points.
Rapid Deployment
Turnkey drinking water filtration system housed in two interconnected modules.
Rapid and Rugged

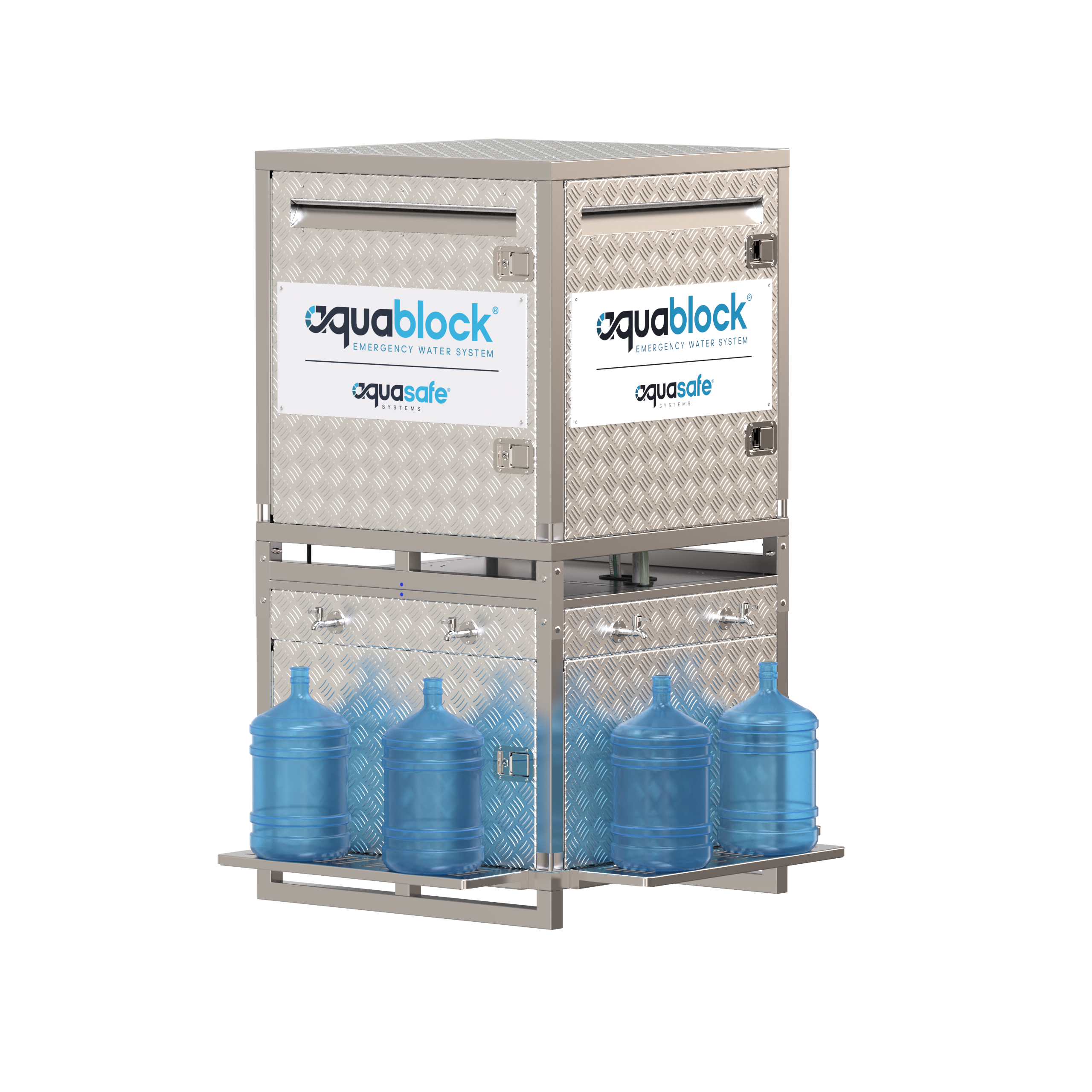

The AquaBlock is a turnkey, rapidly deployable
drinking water filtration system housed in two
interconnected lockable aluminum enclosures.
drinking water filtration system housed in two
interconnected lockable aluminum enclosures.
Fully Equipped
5-stage water filtration process incorporating a mesh pre-filter, ultrafiltration (UF), activated carbon (GAC), reverse osmosis (RO), and residual chlorination to keep the water safe after access for 24 hours.
Ready for Multiple Conditions
- Accepts surface and ground water sources.
- Six water access points, bottle pedestals.
- Produces 800 liters per hour in UF mode, and 400 LPH in UF + RO mode.
- External lighting for night-time operations.
- Internal space heaters to protect the system in freezing conditions.
-
After initial use, the AquaBlock can be re-staged for future use, thus building
capacity to respond to future events.

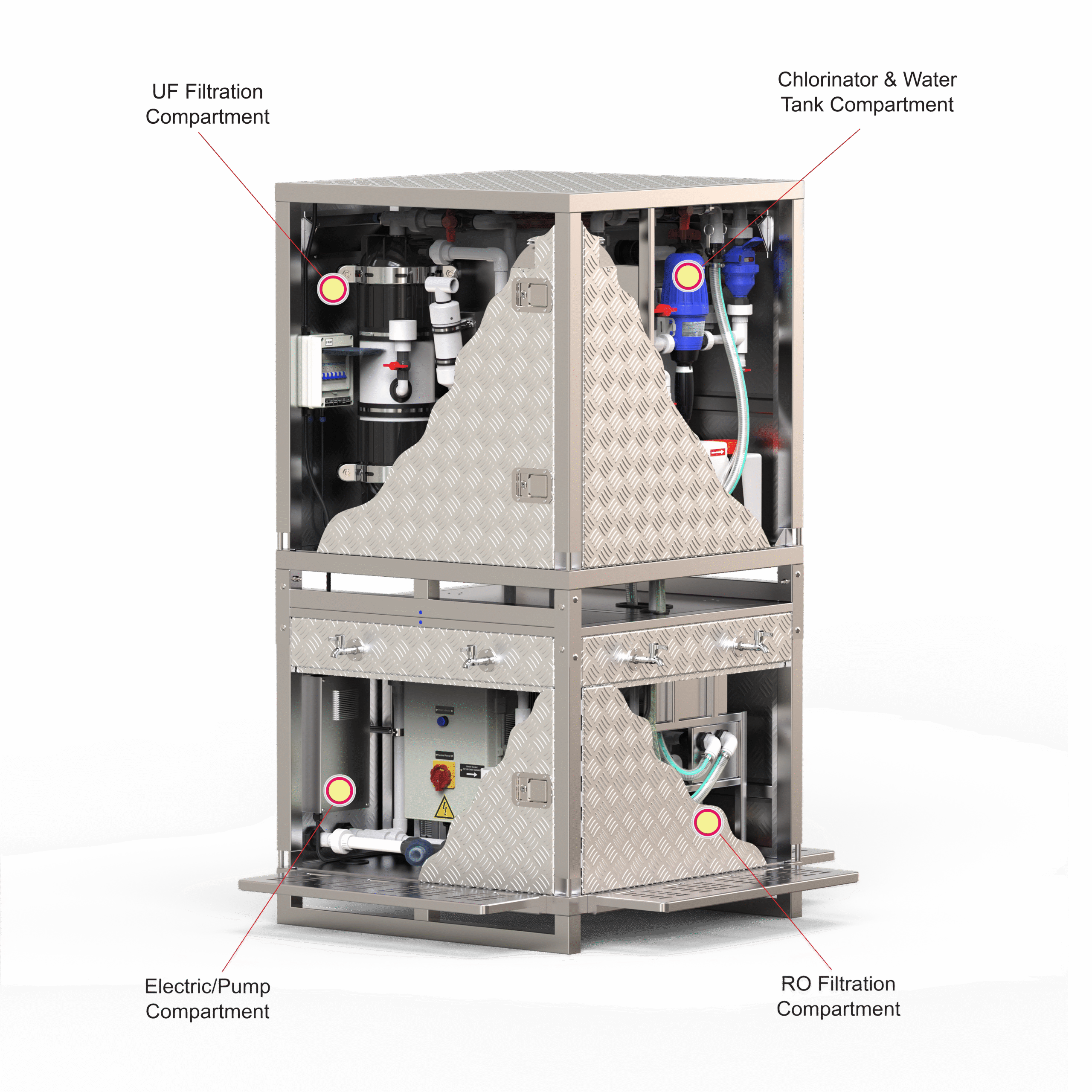

Impressive 5-Stage System

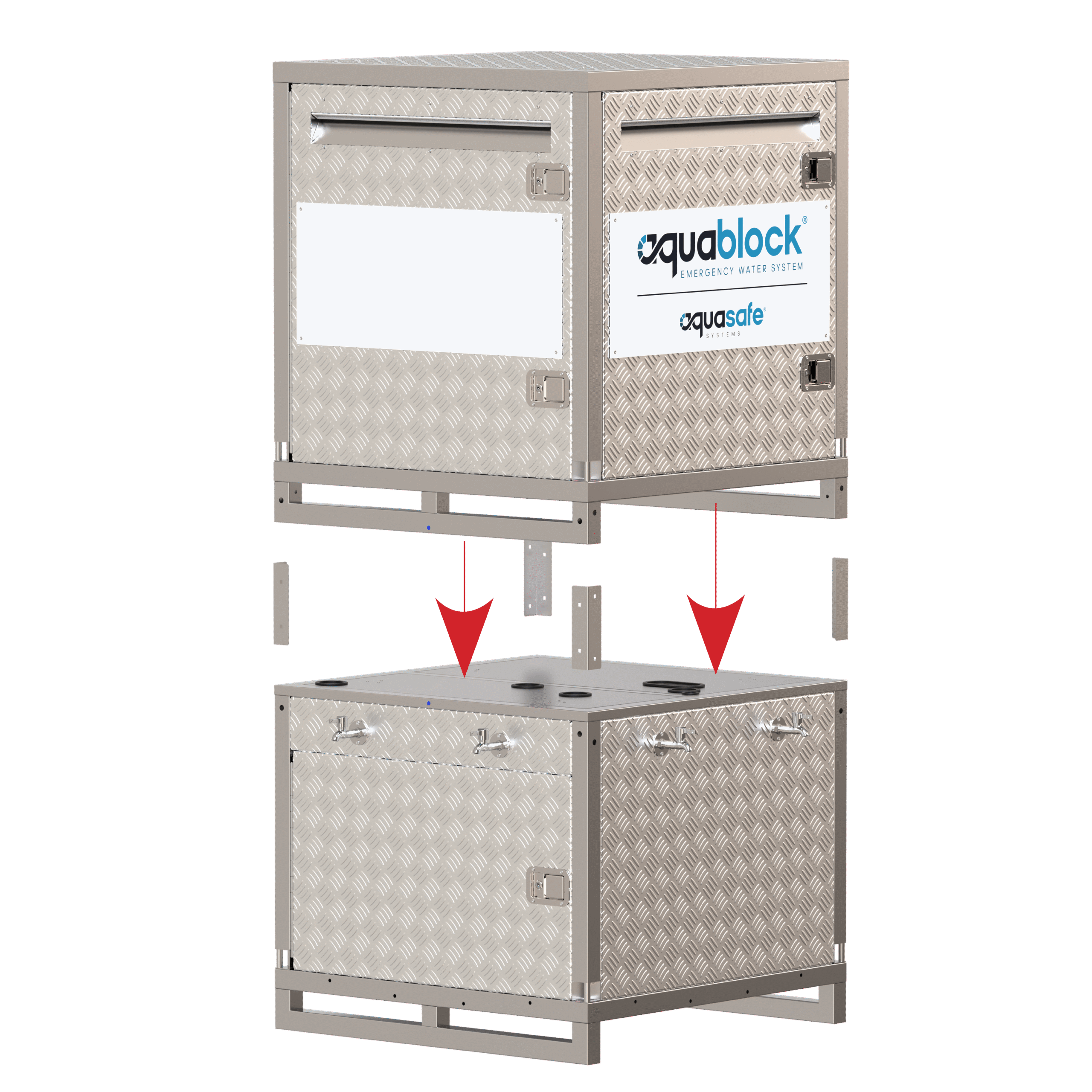

Featuring a Modular
Two-piece Design
Major Section Detail Views

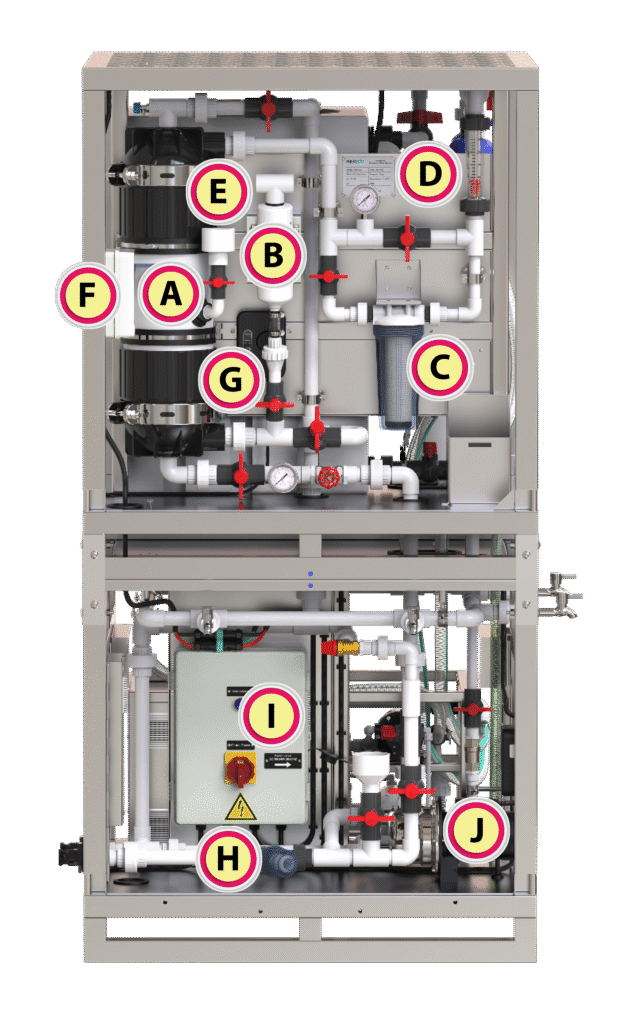

Front Side View
- A. UF filter
- B. Air purge pump (manual)
- C. Carbon filter
- D. Flow meter (float)
- E. Chlorine cleaning input
- F. Power switch box
- G. Air circulation heaters (2)
- H. Washable screen filter
- I. Power supply box
- J. Electric pump

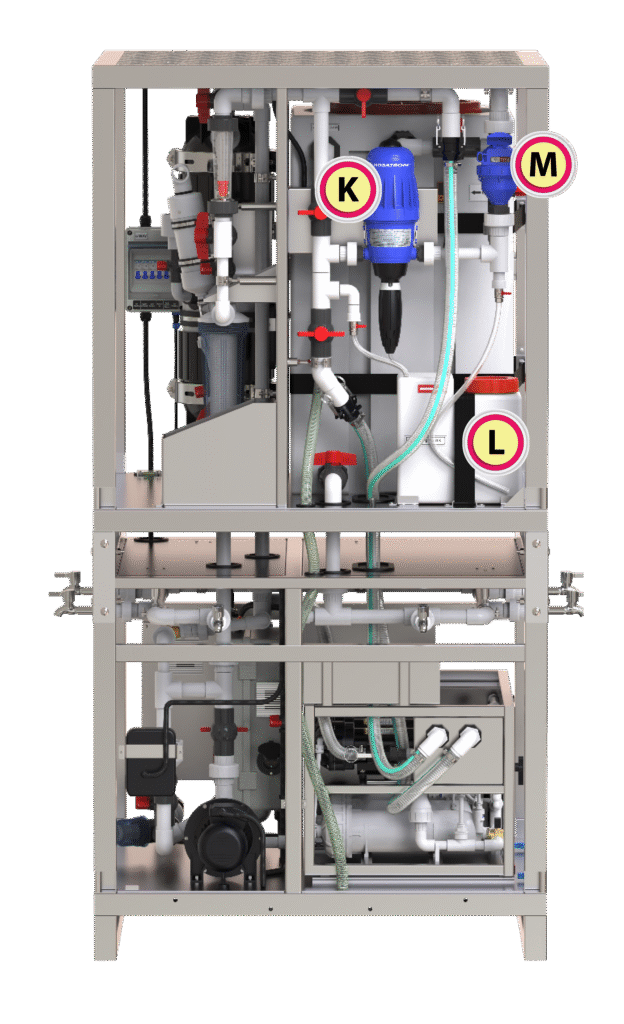

Right Side View
- K. Chlorinator
- L. Chlorine solution tank
- M. Water meter

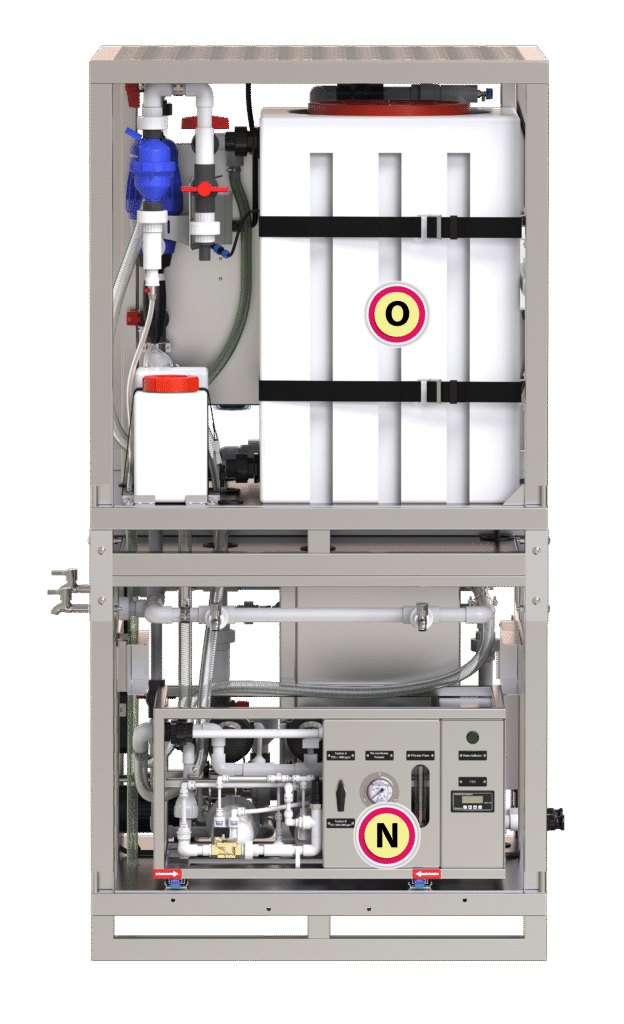

Rear Side View
- N. RO filtration module
- O. Water tank (230-liter)

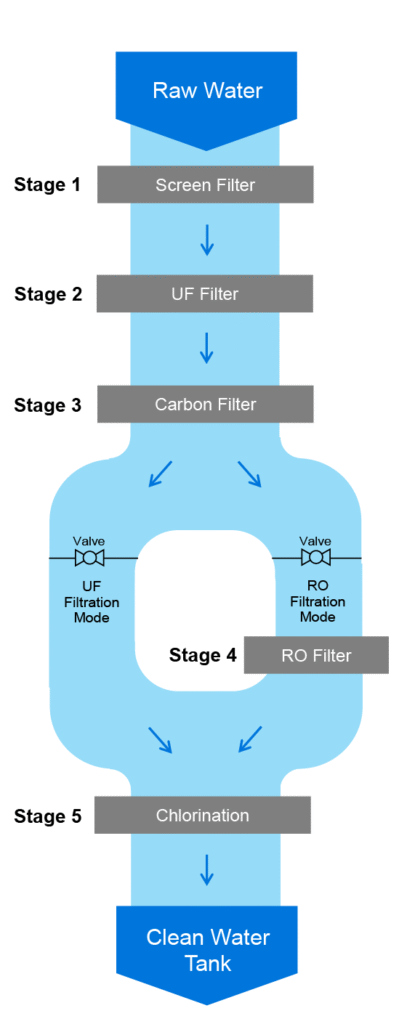

Filtration Process Overview
FILTER TYPE
REMOVES
Screen
400 µm precision*
- Large particulates
Ultrafiltration (UF)
01 µm precision
- Worms (30 µm)
- Protozoa, cysts (1 µm)
- Clay, silt, dirt (0.06 µm)
- Bacteria (0.2 µm)
- Virus (0.02 µm)
Activated Carbon
Absorption
-
Organic compounds to
improve drinking water
color, odor, and taste.
Reverse Osmosis
0.0001 µm precision
- PFAS (0.0004 μm)
- Nitrates (0.0003 μm)
- Fluoride (0.0002 μm)
- Pharmaceuticals (0.0002 μm)
- Metals (0.0001 μm)
- Salts (0.0001 μm)
Chlorine Dosing
- Proportional chlorine dosing adds ‘free’ chlorine to the filtrate to approximately 0.5ppm to keep the filtrate microbiologically safe for up to 24 hours after access.
Safe Drinking Water
Note: Size of removed contaminants shown as minimum, radii dimensions in micron (µm)
Specifications
| Items | Specifications |
|---|---|
| Enclosure dimensions | 100 cm * 100 cm *198 cm, 316 kgs |
| Enclosure material | Aluminum plate |
| UF membrane material | Modified PVC |
| UF membrane fiber IO/OD | 0.7 / 1.3 mm |
| UF filtration precision | 0.01 µm |
| UF membrane area | 16.5 m2 |
| UF working pressure | 0.03 to 0.2 Mpa |
| RO filtration precision | 0.0001 µm |
| pH tolerance range | 2 to 12 |
| Applicable water temperature | 5 to 40°C |
| Designed water production flow | 500 (RO), 750 (RO + UF), 1,000 (UF) LPH |
| Source water turbidity | ≤15 NTU (dead-end), >50 NTU (cross flow) |
| Filtration water turbidity | < 0.5 NTU |
| Silt Density Index (SDI) | <1.0 |
| Microbial pathogen removal rate | > 99.99% |
| Cleaning process | Chlorine liquid soak + air purge |
| Filtration modes | UF Mode: SF+UF+GAC+CL RO Mode: SF+UF+GAC+RO+CL Blended UF and RO mode: SF+UF+GAC+RO+C |
| Chlorine dosing pump range | 0.03 to 0.3% |
| Chlorine solution tank volume | 10 liters, polypropylene material |
| Mechanical flow and water meter | Instantaneous and cumulative rates |
| Instantaneous and cumulative rates | Granular, 10 inch |
| Clean water tank volume | 230 liters, polyethylene material |
| Electric (jet) pump | Model: Lingjie 1ZDB-48 |
| Water inlet and outlet fittings | 1.2 inch internal thread |
| Power source input | 110V - 240V / 50 - 60 Hz |
Two crate packaging:
-
Upper Module 'A' Size: 100cm x 100cm x 113cm (high)
Weight: 162 kgs -
Lower Module 'B' Size: 100cm x 100cm x 85cm (high)
Weight: 154 kgs -
Assembled System Size: 100cm x 100cm x 198cm (high)
Weight: 316 kgs
